Bench-top Temperature Test Chamber

  • Vertical or horizontal structure,compact design, small size, fast heating and cooling.

  • The use of Chinese and English touch controller easy to operate a communication connection function (Rs485).

  • Door can be based on the work of testing needs to change the opening direction, the right place at the table directly online testing.

  • Suitable for R & D units,office buildings,production line production line testing of high and low temperature testing requirements.

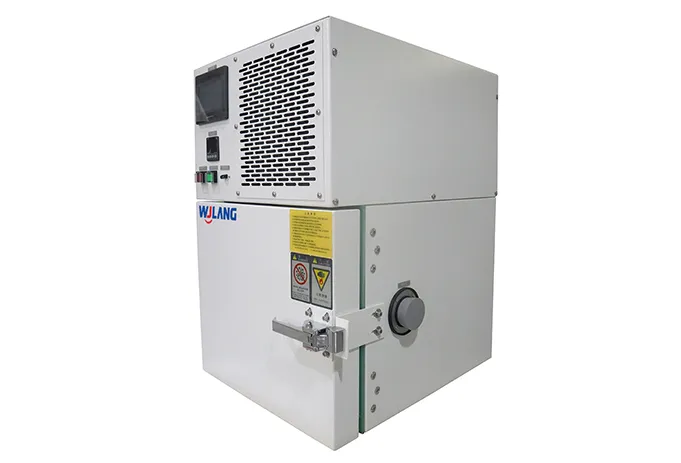

Bench Top Temperature and Humidity Chamber
contact WJLANG now

Specifications of Bench-top Temperature Test Chamber

Bench-top Temperature Test Chamber

Product modelWJL-TOP-15WJL-TOP-22WJL-TOP-30
Inner box size(W*H*Dcm)30×25×2030×30×2535×30×28
Outer box size(W*H*Dcm)44×70×5244×69×69.584×69×54
temperature range(-68℃、-40℃、-20℃~150℃)
Temperature control stability±0.3℃
temperature distribution deviation±2℃(-40℃~80℃)
Heating timenormal temperature→100℃25minute
Cooling timenormal temperature→-20℃40minute、normal temperature→-40℃60minute、normal temperature→-60℃60minute


Bench-top Temperature Test Chamber

Specifications

Temperature range

-68℃、-40℃、-20℃~100℃

lnner tank capacity

15L、22L、30L

Optional

Glass window
